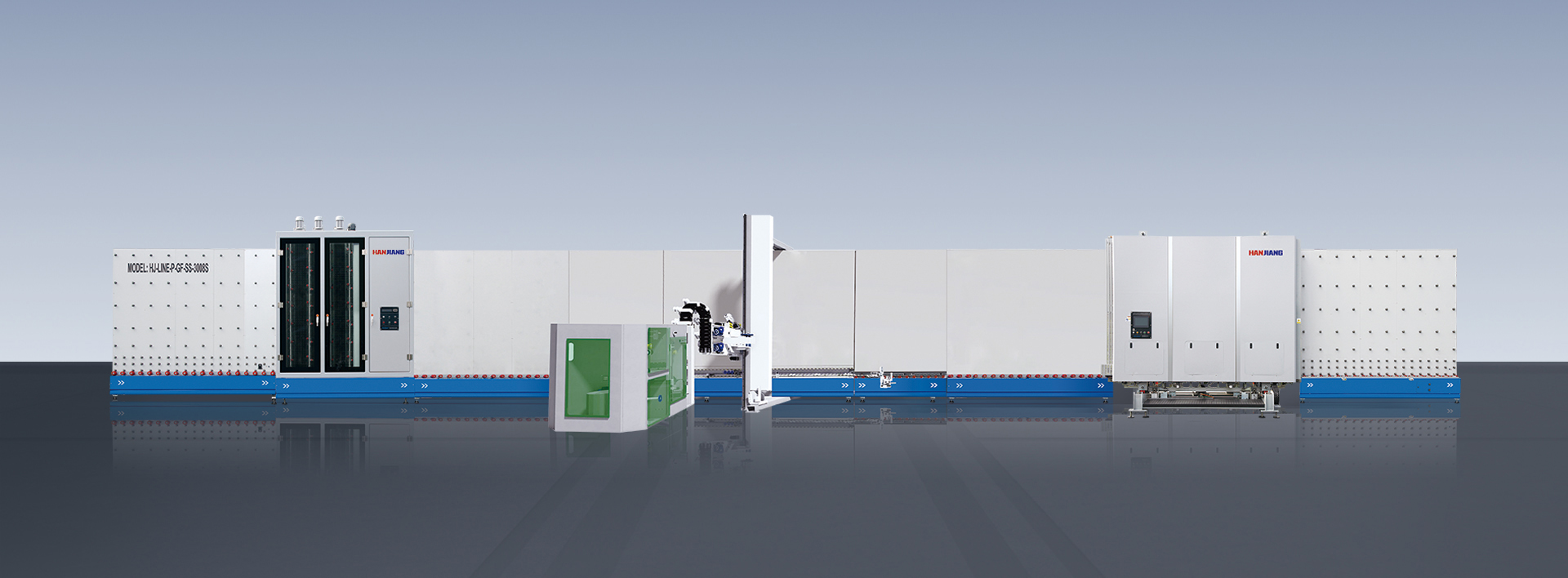

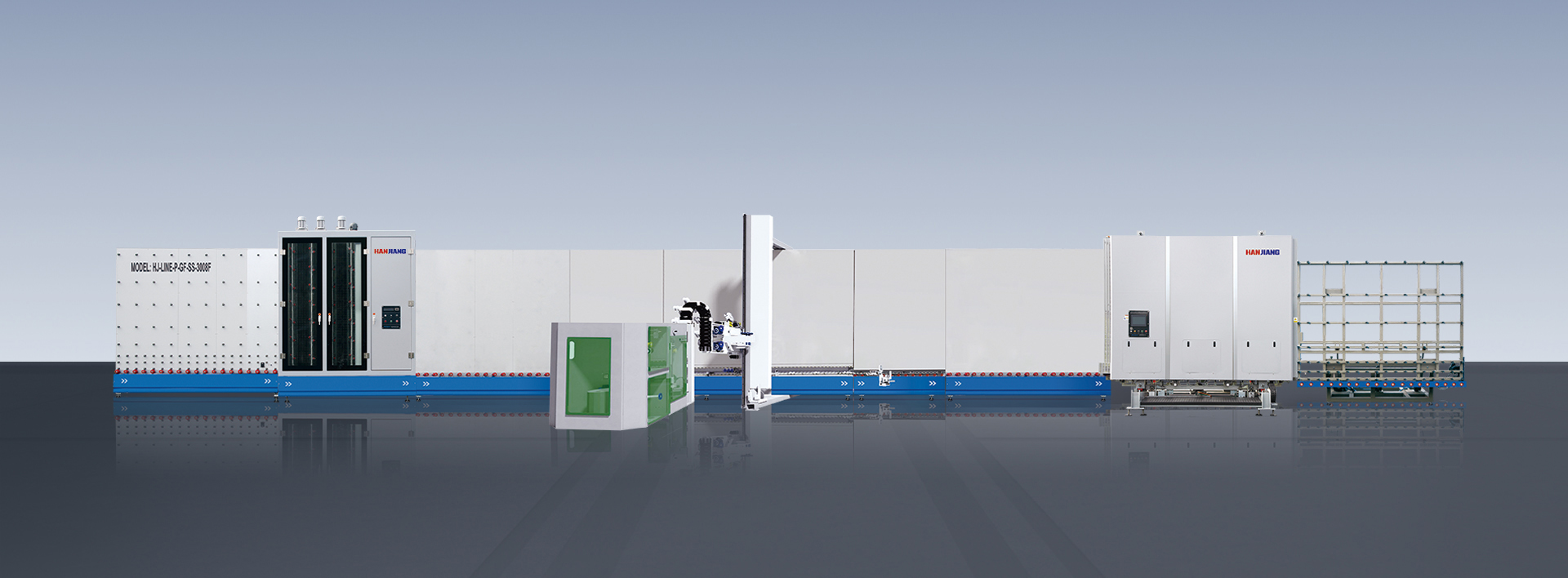

Introduction of super spacer IG line

IG line with super spacer applicator can apply super spacer frame on glass automatically. The first glass after washing-drying and then stop in the press machine at the same time suctioned to the front panel. The second glass will stop at super spacer section and position precisely by X-Y axis. Applicator will automatically apply super spacer frame on glass. After spacer frame attaching then the second glass continues to press to be assembled and pressed automatically. The IGU comes out and first sealing finish. Argon gas filling function and Aluminum frame function can be added as an optional.

Feature

PLC control system with touch screen interface
Multi-axis servo linkages, intelligent, fast and accurate

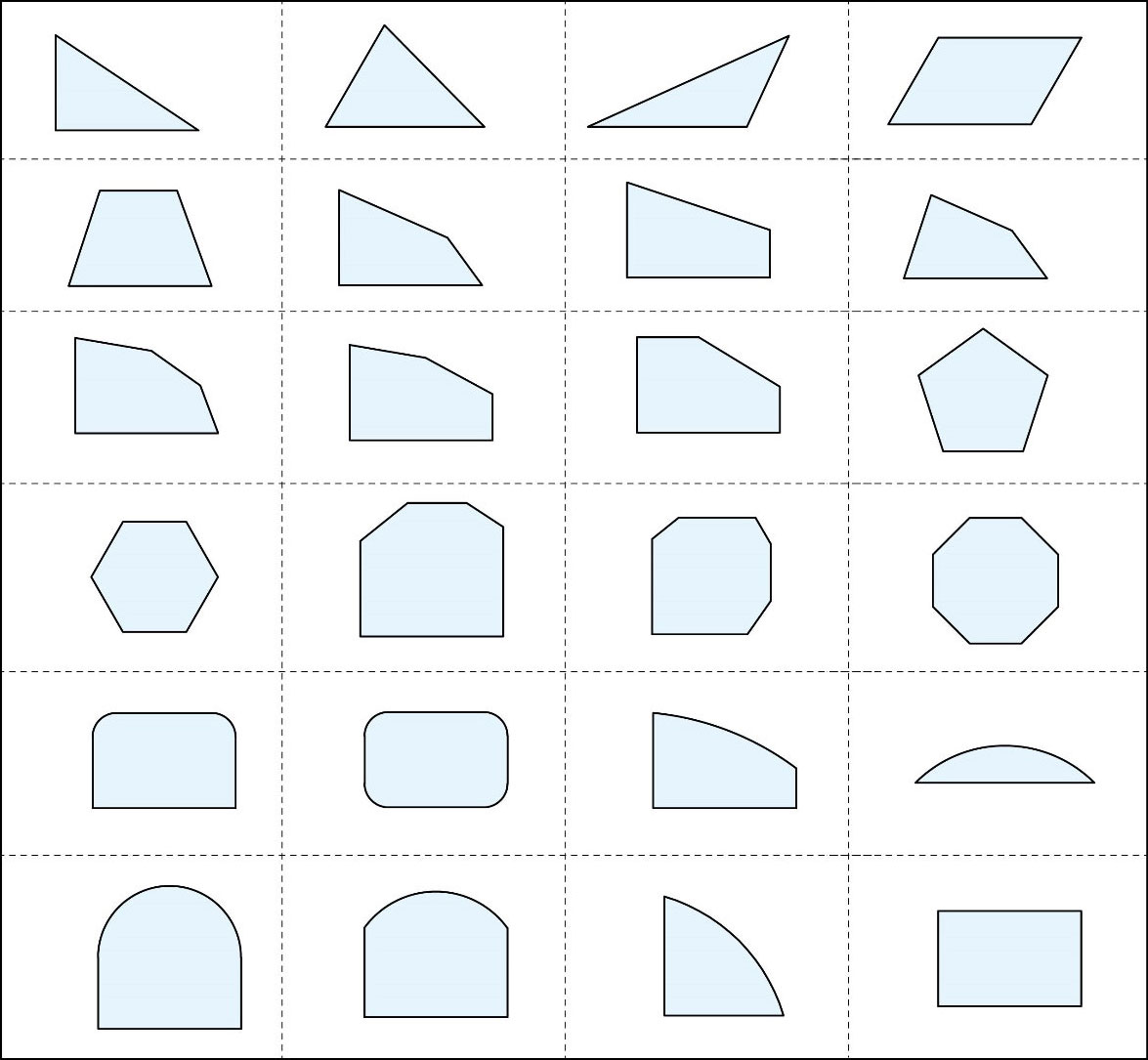

Adjustable V-cutting blade for shape glass
Special blade for Georgian bar processing
Automatic inspecting glass dimension and thickness
Automatic collection system for cutting chips
Tape bonding device is available
Suitable for triple insulating glass units for different spacer widths

Remote communication function
Adopt inverter drive, automatically adjust on material feeding speed according to compensation
Double applicator heads are available for two different spacers, allowing alternating application easily
Option:
Head's option: double applicator heads
Head's model: butyl coating device
Max glass size: can be customized

Technical Data

Max glass size: 2500×3000mm (2000×2500mm)
Min glass size: 300×450mm
Spacer thickness: 8~18mm (8-18mm*option)
Insulating glass thickness: 10-48mm
Washing glass thickness: 3-15mm
Washing speed: 0-10m/min

LOW-E brush: 6 units (3 units for Low-E)
Conveying speed: 45m/min
Power: 3P 380V/1P+N 220V 50Hz 38kW
Air source: Air quantity: 0.8m3/ min 　Air pressure: 0.7MPa
Water conductivity: ≤30μs/cm

Customized IG line- insulated glass processing size

1500 Series

1500 × 2000mm

2000 Series

2000 × 2500mm

2500 Series

2500 × 3600mm / 2500 × 4000mm / 2500 × 5000mm / 2500 × 6000mm / 2500 × 7200mm / 2500 × 8000mm / 2500 × 9000mm / 2500 × 12000mm

3000 Series

3000 × 3600mm / 3000 × 4000mm / 3000 × 5000mm / 3000 × 6000mm / 3000 × 7200mm / 3000 × 8000mm / 3000 × 9000mm / 3000 × 12000mm

3300Series

3300 × 3600mm / 3300 × 4000mm / 3300 × 5000mm / 3300 × 6000mm / 3300 × 7200mm / 3300 × 8000mm / 3300 × 9000mm / 3300 × 12000mm

Insulating Glass Type

Types of insulated glass or double glass or multi later IGU

　Double glazing

　Double glazing with gas filling

　Triple glazing

　Triple glazing with single layer gas filled

　One side step

　Two side step

　Three side step

　Four side step

Application Area

Architectures

Window & Door, Curtain wall

Transportation tools

High-speed rail glass, side window

Home appliance

Refrigerator glass

Solar glass
